Controllers

Series 50-75

Series 50/75 RO controllers
Series 50/75 RO controllers
Pricing
S50 standard $514.00
Wire harness kit $92.00
S75 with inlet solenoid relay and auto flush relay $692.00
Wire harness kit $104.00

The Series 50/75 controller is designed for the small commercial reverse osmosis systems. This controller incorporates relay output and dry contact inputs to either run or shutdown as necessary for proper operation. The series 50/75 has up to three relay outputs: inlet solenoid valve, RO pump motor, and an optional flush solenoid valve.

The controller's three inputs will monitor the inlet pressure, tank level, and pretreatment lock. An LED on the front of the controller will visually indicate the operating status of the RO unit. The Series 50/75 controller can operate a one horse power single phase pump motor directly with the RO pump relay output. This controller provides crucial time delays required to prevent the RO unit from false shutdowns.

All of the adjustments are made with the six position dip switch located in the center of the PCB. This controller provides the OEM a sufficient level of control at an economical price.

Functions Standard time delays
  • RO pump motor
  • Inlet solenoid
  • Low feed pressure
  • RO storage tank
  • Pre-treat lockout
  • Tank full/Pump off: 5 sec
  • Tank full/Pump on: 2 sec or 15 min
  • Pressure fault: 2 sec
  • Pretreat lockout: 2 sec
  • Automatic reset: 60 min
  • Pressure fault retry: 30 sec, 5 min, 30 min
  • Optional auto flush: 5 min

Series 100

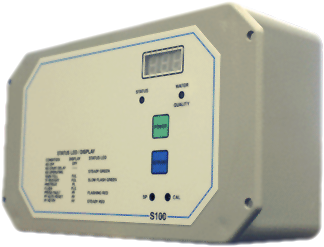

Series 100 RO controllers
Series RO controller
Pricing
Series 100 $932.00
Wire harness kit $80.00

An ideal solution for the monitoring and control of light commercial reverse osmosis units. This economical controller provides relays for the RO pump, inlet solenoid valve, and membrane flush solenoid valve.

The dry contact switch inputs monitor storage tank level, low and high pressure switch signal, and system lockout for pretreatment backwash or regeneration for on/off operation. All inputs and outputs are controlled with time delays for proper operation

Additionally the TDS value incorporates a feild adjustable set point for water quality threshold, allowing the unit to produce a system warning if the water quality threshold is exceeded. LED indicates water quality and operating status.
Features:
  • Economical controls
  • Visual status LED
  • TDS monitor w/sensor (0-1000PPM)
  • 3 digit LED display
  • Jumper selectable flush types
  • Jumper selectable switch inputs
  • TDS calibration adjustment
  • TDS set point adjustment
  • Quick disconnect high voltage terminals
  • Plug in terminals for switch inputs
  • Panel mountable enclosure
  • Optional wire harness kit
Specifications: Inputs/outputs switch inputs: Control relays:
  • Power: 102 VAC or 240 VAC, +10 -15% 50/60Hz
  • Enviorment: -22 to 140°F, 0-95% RH, non-condensing
  • Enclosure: 8.25" x 5.0" x 3.0" ABS plastic
  • Low pressure switch
  • RO storage tank full
  • Pretreatment lockout
    • (All switch inputs are jumper selectable NO or NC)
  • Inlet solenoid valve 120/240 VAC 5A maximum
  • RO pump 120/240VAC 1HP, single phase maximum
  • Flush solenoid valve 120/240 VAC 5A maximum

Series 150

Series 150 RO controllers
Series 150 RO controller
Pricing
Series 150 $1106.00
Second conductivity PC board with sensor $372.00
I/O expander for permeate divert or remote alarm relay
and aux relay with tank low input. 		$230.00
Motor controls for larger motors and 3 phase application Contact
Custom requirments Contact

The series 150 Microprocessor controller has the features and options to allow OEM flexibility to meet many different specifications. the controller has five relay outputs, four dry contact inputs, and two TDS/conductivity inputs. A 2x20 LCD display provides the operating status of the RO unit along with the water quality, operating hours, and water temperature.

Features:
  • Relay outputs on the Series 150 controller operate the high pressure pump, inlet valve, flush valve, permeate divert valve, and remote alarm.
  • The relay for the high pressure pump can operate a 1HP single phase pump motor directly without an external motor controller.
  • Controllers for higher power pump motors are available upon request.
  • Dry contact input control the start and stop of the RO unit by monitoring the inlet pressure, tank level and pretreatment equipment.
  • permeate monitor and sensor are temperature compensated.
Monitoring and/or control of:
  • RO high pressure pump motor
  • Inlet solenoid valve
  • Automatic flush solenoid valve
  • Low feed pressure switch
  • High pump pressure switch
  • RO storage tank level switches (1-2)
  • Permeate TDS conductivity
  • Water temperature
  • Pre-treat lockout
  • Operating hours
Specifications: Inputs/outputs switch inputs: Optional:
  • Power: 102/240 VAC, +10 -15% 50/60Hz, 25W
  • Enclosure: 8" x 6" x 4" NEMA 4X
    (Enclosure may be larger to accept motor starters)
  • Pump relay (120/240V, single phase 1HP)
  • Flush valve relay
  • Inlet valve relay
  • Feed TDS/conductivity monitoring
  • I/O expander:
    • Tank low swtich input
    • Permeate divert or remote alarm relay
    • Aux relay

Series 200

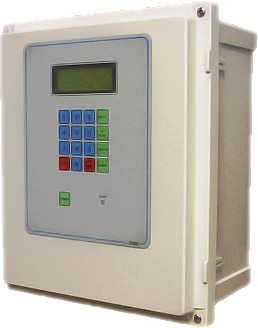

Series 200 RO controllers
Series 200 RO controller
Pricing
Series 200 standard controller $2620.50
Relay output for external alarm and permeate divert $224.00
pH monitor PCB (sensor sold separatly) $476.00
ORP monitor PCB (sensor sold separatly) $476.00
Flow meter interface PCB (for 1 to 4 flow sensors) $897.75
Pressure sensor with 10' cable 0-125 or 0-400 PSI $554.00
Pressure sensor with 10' cable 0-1500 PSI $554.00
pH sensor (insertion type) with 15' cable $610.00
Electronic flow sensors contact
Remote communication
(ethernet, modem, RS-232, satellite, RS485)
Specify protocol (Modbus, BACnet etc.) 		$1800.00

The Series 200 Microporcessor controller is a very versitile controller for reverse osmosis systems. The controller offers features and options tha make it an exceptional choice for large commercial and industrial reverse osmosis systems.

Ther Series 200 controller has the flexibility to met many specifications with six switch inputs, five analog inputs, six relay outputs, and two TDS/conductivity inputs. The 4x20 LCD display provides sensor readings, hours of operation, temperature, alarms, and operating status of the RO system.

Features:
  • Universal AC power 80-240VAC 50/60Hz
  • 4x40 charachter backlit LCD display
  • 18-key keypad with intergral alarm light
  • Programmable time delays and set points
  • Real time clock with battery backup
  • Non-volitile set point memory
  • Audible alarm with timed alarm silence
  • English or metric readings
  • Input/output indicator LEDs
  • Preprogrammed RO functions
Standard functions of the Series 200 Controller are the monitoring and/or control of:
  • Feed water valve relay
  • RO and auxiliary pump conrol relays
  • Permeate and feed TDS/Conductivity
  • Membrane flush valve relay
  • Permeate divert valve relay
  • Temperature
  • Operating hours
  • Low pressure feed switch
  • High pump pressure switch
  • Pretreatment lockout
  • Flow meter interface for permeate
  • RO storage tank switches (1-2)
  • RO sotrage tank low switch
  • Remote alarm output
Specifications: Inputs/outputs: Optional accessories and sensors:
  • Power: 80-265VAC, 50/60Hz
  • Enclosure: 14" x 12" x 8" NEMA 4X
    (Enclosure may be larger to accept motor starters)
  • Communications:
    • RS-232
    • Modem
    • RS-485
    • Graphical display
  • Inputs:
    • 6, switch input
    • 5, 4-20mA analog input
    • 2, conductivity/resistivity
    • 1, pH
    • 4, flow

  • Outputs:
    • 6, relays
    • 1, 4-20mA analog
  • pH sensors with display and alarm set points
  • IEC motor starters and cotnrol transformers
  • Flow sensors to display flow in GPM/LPM, with % recovery displayed and alarms set points for high and low flow rates
  • Pressure snesors allowing display on LCD of pressures and differential pressures with programmable set points for high, low and differential pressure alarms

Series 250

Series 250 RO controllers
Series 250 RO controller

The most versitile controller of the ROtrol product line, the Series 250 controller is an exceptional choice for industrial and other high-level filter or membrane technology applications.

Unlike a PLC, the Series 250 controller is supplied complete with all the end devices necessary for the monitoring and control of complex water treatment equipment. This eliminates the unnecessary and costly purchasing of seperate water monitors and controls.

User-friendly field programmable set points are provided to allow the customer the flexibility of adjusting all the time delays and other associated functions. The standard controller features universal AC power, 8 switch inputs, 8 analog inputs, 6 relay outputs, 2 analog outputs, 2 channle flow meter interfaces, and channel TDS/Conductivity. Additionally inputs and outputs are optionally available.

Features:
  • Universal AC power 80-240VAC 50/60Hz
  • 4x40 charachter backlit LCD display
  • 18-key keypad with intergral alarm light
  • Programmable time delays and set points
  • Real time clock with battery backup
  • Non-volitile set point memory
  • Audible alarm with timed alarm silence
  • English or metric readings
  • Input/output indicator LEDs
  • Preprogrammed RO functions
  • NEMA 4X hinged enclosure
  • Plug in terminal strips
  • Panel or frame mount
Standard functions of the Series 250 Controller are the monitoring and/or control of:
  • Feed water valve relay
  • RO and auxiliary pump conrol relays
  • Permeate and feed TDS/Conductivity
  • Membrane flush valve relay
  • Permeate divert valve relay
  • Temperature
  • Operating hours
  • Low feed pressure switch
  • High pump pressure switch
  • Pretreatment lockout
  • Flow meter interface for permeate
  • RO storage tank switches (1-2)
  • RO sotrage tank low switch
  • Remote alarm output
  • RS-232 serial port output
Specifications: Inputs/outputs: Optional accessories and sensors:
  • Power: 80-265VAC, 50/60Hz
  • Enviorment: -22-140°F, -95%RH, Non condensing
  • Display: 4x40 character LCD
  • Enclosure: 16" x 14" x 8" NEMA 4X
    (Enclosure may be larger to accept motor starters)
  • Communications:
    • RS-232
    • Modem
    • RS-485
    • Graphical display
  • Inputs:
    • 8, switch input
    • 8, 4-20mA analog input
    • 1, conductivity/resistivity
    • 2, pH
    • 2, flow

  • Outputs:
    • 8, relays
    • 2, 4-20mA analog
  • pH sensors with display and alarm set points
  • IEC motor starters and cotnrol transformers
  • Flow sensors to display flow in GPM/LPM, with % recovery displayed and alarms set points for high and low flow rates
  • Pressure snesors allowing display on LCD of pressures and differential pressures with programmable set points for high, low and differential pressure alarms

Flow meters

HCTI

Series 4000 dual scale (GPM/LPM) flow meters
HCTI flowmeter
  • 4000 Series Flowmeter bodies are cut & precision CNC machined from solid, clear acrylic plastic blocks.
  • Scales are easy to read - The 4" Long front scale location and clear background provides excellent visibility. Mid-range calibration is established with a master flowmeter.
  • Durable and atractive contruction - The machined Acrylic bodies are practically unbreakable. The 4000 Series is available with custom PVC Pipe connection and panel Locknut for easy installation.
Model # Flow Rate Price
FM-4101-GPH 0-60 GPH $82.00
FM-4201 .2-2 GPM
1-10 LPM		 $82.00
FM-4501 .5-5 GPM
4-18 LPM		 $82.00
FM-41001 1-10 GPM
2-40 LPM		 $123.00
FM-42001 2-20 GPM
7-70 LPM		 $148.00
Specifications
HCTI flowmeter dimmensions
Meter body: Clear acrylic plastic
Pipe connections: Gray PVC NSF
Max pressure & temp:
100 PSIG (600 kPa)@ 150°F (65°C)
150 PSIG (1034 kPa)@ 100°F (38°C) 		Accuracy: ± 2% of Full Scale
Float material: 316 stainless steel
Scale: Permanent silk screen
O-rings: Viton
Lock nut: PVC
Dimm Description FM-4201 FM-4502 FM-41001 FM-42001
A Block height 7.2 in. 7.2 in. 9.0 in. 10.75 in.
B Block width 1.4 in. 1.4 in. 1.4 in. 1.8 in.
C Block depth 1.4 in. 1.4 in. 1.8 in. 1.9 in.
D Total depth 2.7 in. 2.7 in. 3.2 in. 3.8 in.
Connections ports
E Connection size 0.5 in. NPTF 0.5 in. NPTF 0.75 in. NPTF 1 in. NPTF
F Port distance 5.5 in. 5.5 in. 6.5 in. 8 in.
G Distance to bottom port 0.8 in. 0.8 in. 1.0 in. 1.0 in.
Parts reference
HCTI flow meter exploded
# Description FM-4201 FM-4501 FM-41001 FM-42001
1 Top plug FM-4201-5 FM-4501-5 FM-41001-5 FM-42001-5
2 Top O-ring FM-4201-7 FM-4501-7 FM-41001-7 FM-42001-7
3 Float FM-4201-2 FM-4501-2 FM-41001-2 FM-42001-2
4 Float rod FM-4201-3 FM-4501-3 FM-41001-3 FM-42001-3
5 Float stop FM-4201-6 FM-4501-6 FM-41001-6 FM-42001-6
6 Body FM-4201-1 FM-4501-1 FM-41001-1 FM-42001-1
7 Port O-ring FM-4201-8 FM-4501-8 FM-41001-8 FM-42001-8
8 Fitting FM-4201-4 FM-4501-4 FM-41001-4 FM-42001-4
9 Lock nut FM-4201-9 FM-4501-9 FM-41001-9 FM-42001-9

Dwyer

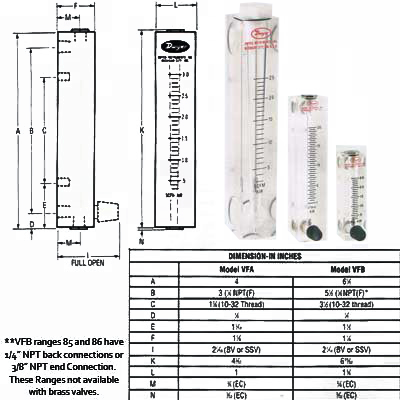

Dwyer flow meter info
Specifications
Meter body: Acrylic plastic. Metering tube machined into body
Wetted metal parts: VFA & VFB- Brass std., SS opt. VFC-SS std.
Floats: S.S., Blk. Glass, Alum., K Monel
Float stops: Stainless steel springs
Pipe connections: **VFA & VFB- 1/8" NPTVFC- 1" NPT
O-rings: Buna-N
Mounting inserts: 10-32x 1/4" deep
Scale: Hot pressed into acrylic body
Knobs: ABS Plastic
Max pressure & temp: VFA & VFB w/out Valve:
100 PSIG (600 kPa)@ 150°F (65°C)
150 PSIG (1034 kPa)@ 100°F (38°C)

VFA & VFB w/ Valve:
100 PSIG (690 kPa)@ 150°F (65°C)

VFC:
100 PSIG (690 kPa)@ 120°F (48°C)
Accuracy: Model VFA, 5%; Model VFB 3%
Model VFC, 2% of full scale
Options
Metering valve & connection: Brass (VFA, VFB)
Stainless Steel (VFA, VFB)
Connections only: Stainless Steel (VFA, VFB)
End connections: Fittings on bottom & top (all models)
Pointer flag: Red ABS plastic (VFA, VFB)
FDA acceptable: 316 SS float & guide rod (required, VFCII)
FDA acceptable: Viton O-rings (required, VFCII)
Dwyer VFA2
Air
Model # Range SCFH air Price
VFA-1 .1-1 Contact
VFA-2 .2-2 Contact
VFA-3 .6-5 Contact
VFA-4 1-10 Contact
VFA-5 2-20 Contact
VFA-6 4-30 Contact
VFA-7 5-50 Contact
VFA-8 10-100 Contact
VFA-9 20-200 Contact
VFA-21 .06-0.5 Contact
VFA-22 .15-1 Contact
VFA-23 .6-5 Contact
VFA-24 1-10 Contact
VFA25 3-25 Contact
VFA-26 6-50 Contact
VFA-27 10-100 Contact
Water
Model # GPH Price
VFA-41 .6-5 Contact
VFA-42 1.2-10 Contact
VFA-43 3-20 Contact
VFA-44 8-40 Contact
Dwyer VFA4
Air
Model # Range SCFH Air Price
VFB-50 0.3-3 Contact
VFB-91 1-10 Contact
VFB-51 2-20 Contact
VFB-52 4-40 Contact
VFB-53 10-100 Contact
VFB-54 15-150 Contact
VFB-55 20-200 Contact
Model # SCFM Air Price
VFB-90 0.3-3 Contact
Model # CC/Min. Water Price
VFB-60 100-1000 Contact
Model # LPM Air Price
VFB-65 0.2-4 Contact
VFB-66 1-10 Contact
VFB-67 1-20 Contact
VFB-68 3-30 Contact
VFB-69 4-40 Contact
Water
Model # CC/Min. Water Price
VFB-82 2-30 Contact
Model # GPH Water Price
VFB-80 0.5-12 Contact
VFB-83 1-20 Contact
VFB-81 6-60 Contact
Model # GPM Water Price
VFB-85 0.2-2 Contact
VFB-86 0.5-5 Contact
Dwyer VFC5
Air
Model # Range SCFH Air Price
VFC-121 2.5-25 Contact
VFC-122 5-50 Contact
VFC-123 10-100 Contact
Model # LPM Air Price
VFC-131 60-700 Contact
VFC-132 200-1400 Contact
VFC-133 300-2800 Contact
Water
Model # GPM Water Price
VFC-141 0.5-5 Contact
VFC-142 1-10 Contact
VFC-143 2-20 Contact
Model # LPM Water Price
VFC-151 2-20 Contact
VFC-152 4-40 Contact
VFC-153 10-75 Contact

Solenoid valves

Stainless steel solenoid valves

Solenoid 2 Way: Normally Closed: Available in 1/2", 3/4", and 1" NPT

These valves are composed of a stainless steel body with a Buna-N seal. They are corrosion resistant and will withstand teperatures ranging from -10°C to 80°C or 14°F to 176°F. We offer 3 NPT sizes to chose from and two input voltage ranges for your convience. Please see our datasheet linked below for more information.

Product description:
High performance solenoid valve, with 2 way direct lifting diaphragm for low pressure applications.

Characteristics:
Direct lifting diaphragm construction.
Open from zero bar for low pressure system applications.

Applicable mediums:

  • Air
  • City gas
  • Water
  • Oil
  • Petroleum

Safe operating temperature range:
NBR Seal: 14°F to 176°F, -10°C to 80°C

Pressure:
0-10 Bar / 0-145 PSI

Port Sizes:

  • 1/2 in.
  • 3/4 in.
  • 1 in.

Port Thread:
NPT

Available orifice size:

  • 15 mm
  • 20 mm
  • 25 mm

Voltage (Tolerance: ±10%):

  • AC - 120V, 240V@60HZ
  • AC - 110V, 220V@50HZ

Coil:
S91B

Materials:

  • Body - Brass or Stainless steel
  • Seal – NBR (Buna-N)
  • Armature Tube - 304 SS
  • Plunger - 430F SS
  • Stop - 430F SS
  • Springs - 304 SS
  • Shading Rings - 304 SS

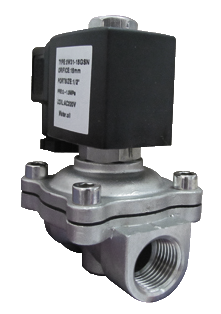

 HCTI stainless steel solenoid valve
Part # Body Port Size Orifice Max. Pressure Voltage Frequency Price
VAL-SV-1/2-304SS-120V Stainless 1/2" 15 mm 145 PSI 110-120V AC 50/60hz $60.00
VAL-SV-1/2-304SS-240V Stainless 1/2" 15 mm 145 PSI 220-240V AC 50/60hz $60.00
VAL-SV-3/4-304SS-120V Stainless 3/4" 20 mm 145 PSI 110-120V AC 50/60hz $70.00
VAL-SV-3/4-304SS-240V Stainless 3/4" 20 mm 145 PSI 220-240V AC 50/60hz $70.00
VAL-SV-1-304SS-120V Stainless 1" 25 mm 145 PSI 110-120V AC 50/60hz $80.00
VAL-SV-1-304SS-240V Stainless 1" 25 mm 145 PSI 220-240V AC 50/60hz $80.00

Nylon solenoid valves

Nylon Solenoid 2 Way: Normally Closed: 50/60 Hz

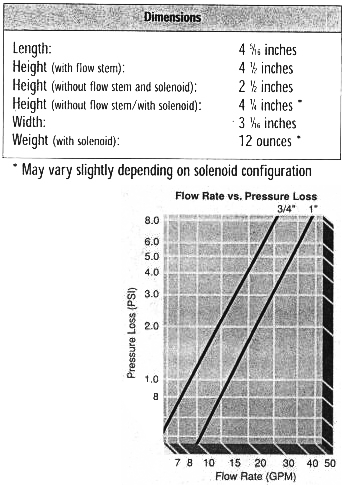

HCTI solenoid valve

HCTI 3/4" and 1" port solenoid plastic control valves are designed to allow maximum water flow over a wide range of pressures. The internal diaphragm allows smooth opening and closing, preventing problems with surge hazards and water hammer. The overall dimensions of either port size valves are identified, with exception of the port threads. All units are available with or without flow control unit.
Electrical
Voltages Available: AC 50/60 Hz - 12, 24, 120 or 240 Volts
DC - 6, 12, 18 or 24 Volts
Power Consumption: AC 5 Watts, DC 6 Watts
Coil construction: Class A (105°C)
Materials
Body and Cover: Glass Reinforced Nylon
Diaphragm: Fabric Reinforced Polyisoprene
Seals: Nitrile (Buna-N), EPDM, or Fluroelastomer
Metal Components: Stainless Steel
General
Pressure ANSI Class 125
Operating Pressure: 10-150 PSI
Temperature Range: Water up to 180°F
HCTI solenoid valve
Part # Description Frequency Price
ECI-953A-305 120 VAC 3/4" NPT Ports 50/60 $69.80
ECI-353A-315 240 VAC 3/4" NPT Ports 50/60 $78.92
ECI-954A-305 120 VAC 1" NPT Ports 50/60 $69.80
ECI-954A-315 240 VAC 1" NPT Ports 50/60 $78.92

Needle valves

HCTI needle valves

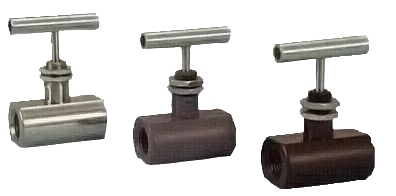

HCTI needle valve
  • Stem O-ring seal below the threads prevent galling and contamination
  • Viton O-ring stem and bonnet seals
  • T6061 Aluminum Handle
  • Panel mount design bonnet with 316 stainless steel panel nuts
  • Stainless steel valves are 316 and highly polished
  • PVC valves are annealed dark grey
  • Panel mounting hole 0.625" diameter
  • Max panel thickness 0.200"
HCTI needle valve diagram
Part Number A B C D
VAL-504-FFS 3.6 2.5 1.2 1.3
VAL-1004-FFS 4.2 2.5 1.7 1.3
VAL-504-FFA 3.6 2.5 1.2 1.3
VAL-504-FFP 3.6 2.5 1.2 1.3
Part Number Connections Orifice Material Working PSI
VAL-504-FFS 1/2 FNPT-1/2 FNPT 0.250 316 SS 6000 PSI
VAL-1004-FFS 1 FNPT-1 FNPT 0.375 X 0.500 316 SS 6000 PSI
VAL-504-FFA 1/2 FNPT-1/2 FNPT 0.250 Acetrop GP 300 PSI
VAL-504-FFP 1/2 FNPT-1/2 FNPT 0.250 PVC 300 PSI

500 series needle valves

500 Series soft seat stainless steel needle valves
HCTI stainless steel needle valve
  • Soft seat design for a bubble tight seal.
  • 6000 psi pressure rating (@ 200°F maximum).
  • Replaceable Delrin seat.
  • Straight through porting for bi-directional, high capacity flaw and easy roddable cleaning.
  • Blow-out proof stem that provides a secondary stem seal in the full open position.
  • Stem packing below the threads prevents thread galling and contamination.
  • Viton® O-Ring & Teflon back-up ring stem seals.
  • All 316SS stems for longer life.
  • Stem and bonnet threads are rolled for greater strength and smoother operation.
  • Stem and bonnet sealing surfaces are burnished to a 16 RMS mirror finish.
  • One piece bonnet with a metal to metal seal to the valve body below the bonnet threads.
  • Bonnet lock pin to prevent accidental loosening.
  • Vinyl bonnet and stem dust cap.
  • 0.187 inch orifice size. Maximum Cv .83.
  • Optional panel mount bonnet and panel nuts.
  • Electro-polish finish on stainless steel valves.
Part # Connection Material Price
502-FFS-PMS 1/4 NPT Female-Female 316 SS $41.00
504-FFS-PMS 1/2 NPT Female-Female 316 SS $84.75
510-FFS 1 NPTF - 1 NPTF 316 SS $190.00

Pressure gauges

900 Series

HCTI pressure gauge

Model No. 25.911
2 ½" Stainless Steel Case Glycerine Filled
¼" NPT Center Back Connection Panel Mount
Specifications
Case 304 stainless steel
Bezel 304 stainless steel
Lens Plexiglass
Bourdon tube Phospher bronze. "C" tube for pressures up to 600 PSI. Coiled safety tube above 600 PSI
Connection 1/4" NPT brass
Movement Brass & nylon with highly polished bearing surfaces
Safety protection Safety relief disc on top of case
Accuracy ± 1.5% Full Scale, ANSI Grade A
Pointer Balanced aluminum, black finish
Dial Aluminum, white background, dual scale PSI kPa. Black PSI scale and red kPa scale. UV resistant
Accuracy Model VFA, 5%; Model VFB 3%
Model VFC, 2% of full scale
Products
Model # Dial range PSI-kPa Figure interval PSI-kPa Graduation interval PSI-kPa Price
25.911-100 0-100 10-200 1-20 $39.20
25.911-300 0-300 50-500 5-50 $39.20
25.911-600 0-600 100-1000 10-100 $68.10
25.911-1500 0-1500 300-2000 50-500 $79.30

Thermometers

716 Series: U-Clamp Mount

2 1⁄2" Stainless Steel Cased Liquid Filled Pressure Gauge
HCTI thermometer
Specifications
Weiss Series 716 Panel Mounting Thermometers are used and specified by most Foodservice Equipment Manufacturers. Or anywhere that requires remote readings - for use on pumps and compressors, refrigerators, freezers, holding cabinets and warewashing equipment.
The custom dials with company logo and attractive case styles make this series of Thermometers a welcome addition to any equipment in which they are housed. They provide an excellent solution for the typical OEM need to choose a reliable, yet economical, vapor actuated dial thermometer. Weiss has the largest NSF listings, contact the factory for models, ranges and applications.
Features
1⁄2" S.S. Panel Mount 24" Capillary Tinned
1⁄2" NPT Bulb Connection 7⁄16" Dia. x 2.5" Bulb
(dual-scale)
-40°F to 110°F
-40°C to 43°C 		Vapor actuated dial thermometers "zero set" calibration
Products
Model # Price
716 Series $40.00
